Boiler Pressure Gauge Manufacturers In India
- Conforms to Indian Boiler Regulations (IBR) & IS3624 Quality Standards
- Standard Ranges: 0 to 10 kg/cm², 0 to 16 kg/cm², 0 to 28 kg/cm², 0 to 40 kg/cm², 0 to 100 kg/cm²
- Heavy Duty Bourdon Tube in Seamless SS 316 or Annealed Phosphor Bronze
- Supplied with Matching IBR Certified Steam Siphons (Pig-Tail / U-Type) & Cock

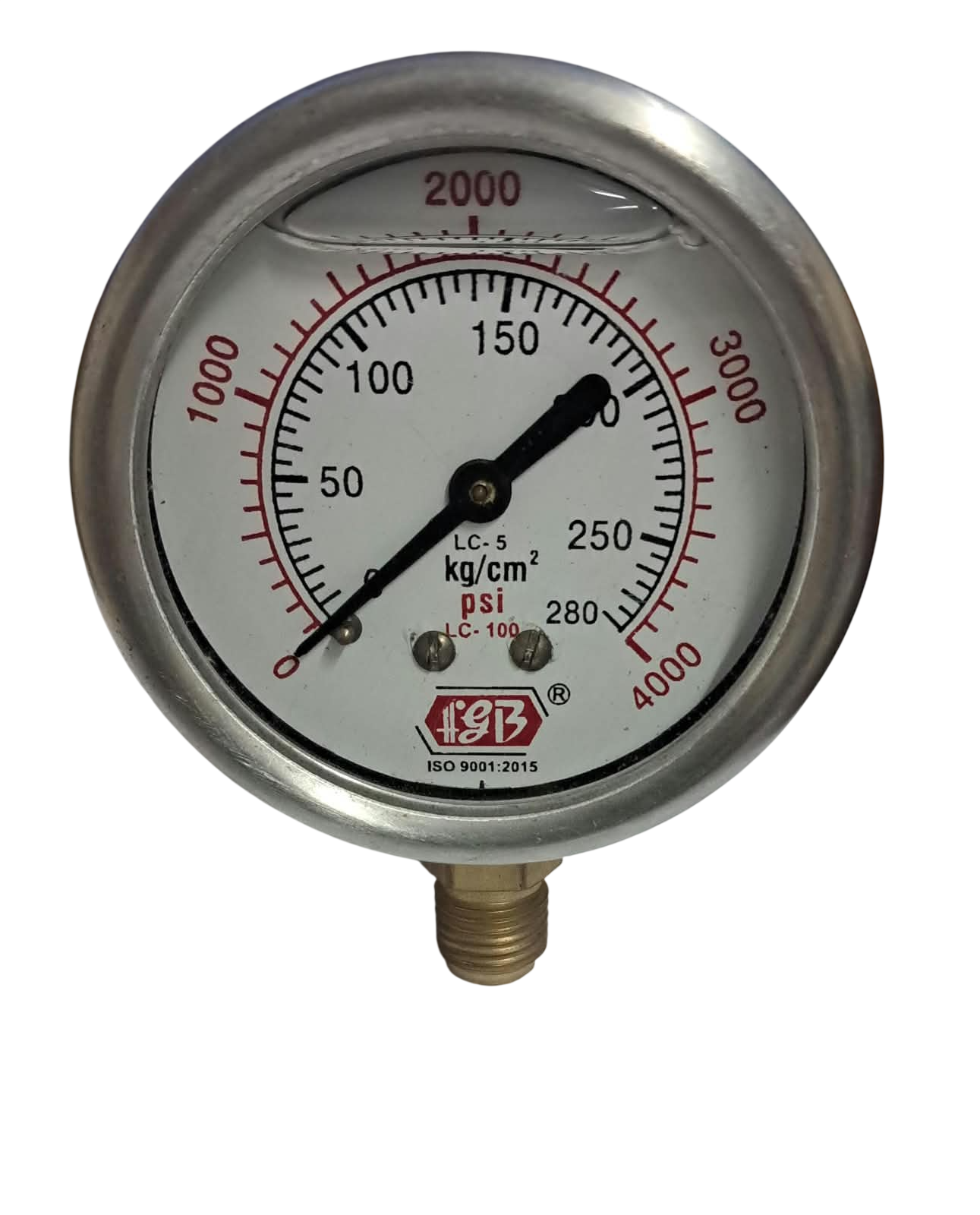

FGB Precision Assembly: Boiler Pressure Gauge Manufacturers In India
Standard Technical Specifications
Engineered to satisfy demanding industrial criteria. Review our standard parameter ranges or request custom connection threads, dial branding, and special wetted alloys.
| Specification Parameter | Standard Technical Values / Manufacturing Options |
|---|---|
| Dial Sizes | 100mm (4"), 150mm (6"), 200mm (8"), 250mm (10") |
| Standard Boiler Ranges | 0-7, 0-10, 0-14, 0-17.5, 0-21, 0-28, 0-40, 0-70, 0-100 kg/cm² (or Bar / PSI) |
| Accuracy Class | Class 1.0 (±1.0% FSD) or Class 0.5 (Test Grade) |
| Wetted Parts | AISI SS 316 Stainless Steel or Phosphor Bronze |
| Case & Bezel | Heavy Duty SS 304 or Cast Iron / Cast Aluminium with Weatherproof Seal |
| Process Connection | 3/8", 1/2" BSP / NPT Male Thread |
| Working Media | Saturated & Superheated Steam, Boiler Feedwater |
| Siphon Requirement | Condensate loop siphon mandatory to protect bourdon tube from live steam heat |
Key Engineering & Operational Advantages
Built for continuous 24/7 industrial performance, long service life, and unmatched measurement stability.
Steam Heat Isolation
Engineered for pairing with water seal siphons that condense live steam into protective cooling liquid.
IBR Regulation Conformance
Meets strict Indian Boiler Regulations for scale visibility, red marking at working pressure, and accuracy.
High Contrast Boiler Dial
Large 150mm/250mm dials with bold numerals readable from the boiler house ground floor.
Overpressure Resistance
Withstands boiler safety valve pop tests and high-pressure hydraulic boiler inspections.
Recommended Industries & Operating Environments
Trusted by plant engineers, system integrators, and OEM equipment builders across diverse sectors.
Frequently Asked Questions (FAQs)
Find answers to common technical queries regarding specifications, selection, calibration, and delivery.
Live steam temperatures (often 150°C to 350°C) will distort or anneal the gauge’s bourdon tube if allowed to enter directly. A pigtail or U-type siphon traps steam which condenses into water, forming a cool hydraulic barrier that shields the gauge internals from extreme heat.
Under Indian Boiler Regulations (IBR), the maximum scale of the boiler gauge should generally be approximately double the normal working pressure of the boiler, with the maximum permissible working pressure prominently marked in red.
Yes, we provide IBR approved test certificates along with our boiler pressure gauges.
Get Instant Pricing for Boiler Pressure Gauge Manufacturers In India
Fill in your required quantity and dial specifications. Our technical engineering team will respond within 2 hours with wholesale factory pricing.
