Weldead Diaphragm Pressure Gauge In India
- Continuous Laser-Welded Construction with Zero Gasket or O-Ring Failure Risk
- Helium Mass Spectrometer Leak Tested to 1x10⁻⁸ mbar·l/s for Absolute Containment
- Corrosion Resistant SS 316L, Hastelloy C-276, Monel & Inconel Diaphragms
- Compact Threaded ("I" section) or Direct Welded Process Connection

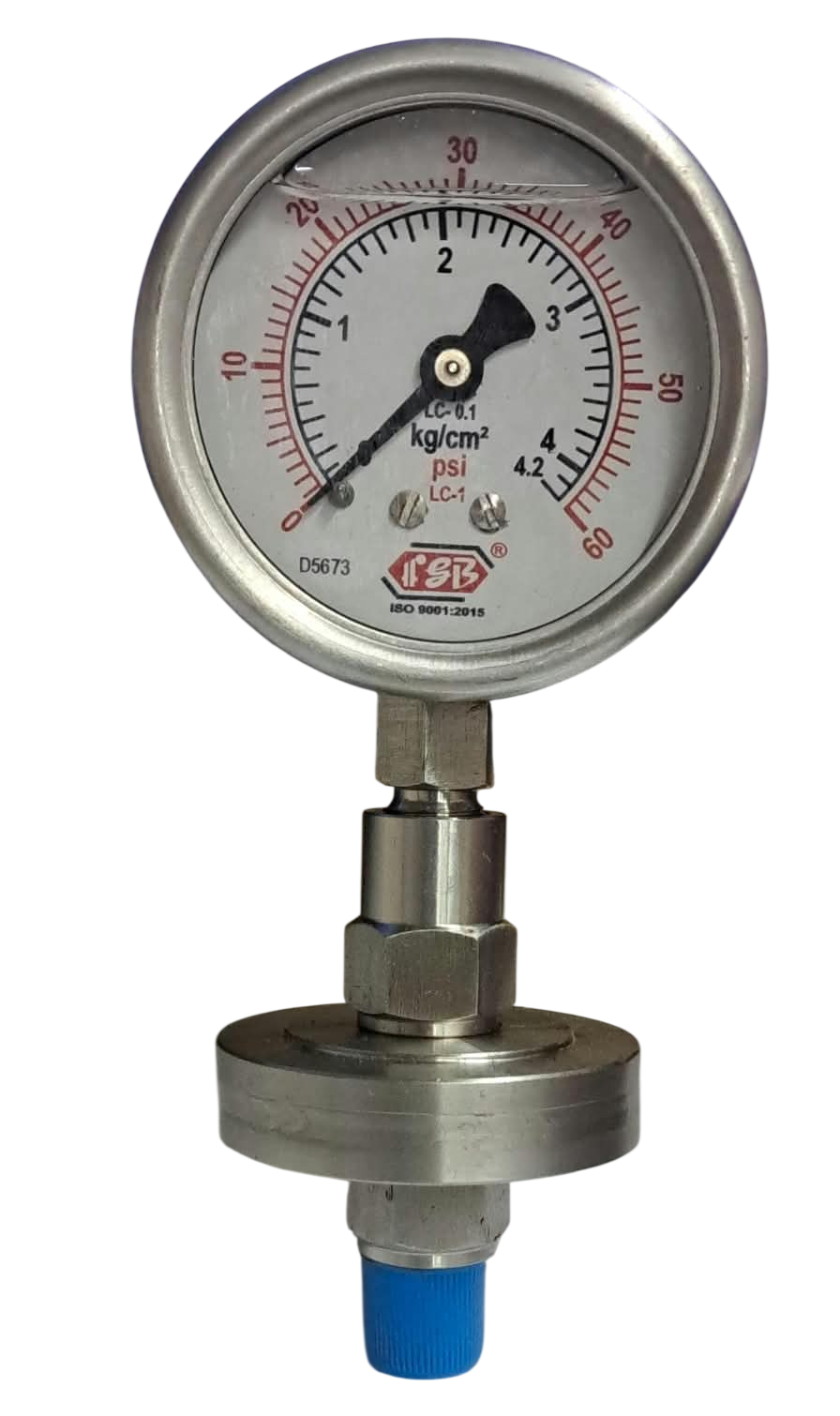

FGB Precision Assembly: Weldead Diaphragm Pressure Gauge In India
Standard Technical Specifications
Engineered to satisfy demanding industrial criteria. Review our standard parameter ranges or request custom connection threads, dial branding, and special wetted alloys.
| Specification Parameter | Standard Technical Values / Manufacturing Options |
|---|---|
| Dial Sizes | 63mm (2½"), 100mm (4"), 150mm (6") |
| Pressure Ranges | -1 to 0 Bar (Vacuum) up to 0 to 400 Bar (6000 PSI) |
| Joint Construction | 100% Hermetically Laser Welded / TIG Welded |
| Diaphragm Metallurgy | AISI SS 316L (Standard), Hastelloy C-276, Tantalum, Monel |
| Wetted Body | AISI SS 316 / SS 316L |
| Transmission Liquid | High-Temperature Silicone Oil (-40°C to +250°C) |
| Connection Sizes | 1/4", 3/8", 1/2" BSP / NPT Male or Female Thread |
| Accuracy Class | Class 1.0 (±1.0% FSD) conforming to IS3624 / EN 837-1 |
Key Engineering & Operational Advantages
Built for continuous 24/7 industrial performance, long service life, and unmatched measurement stability.
Zero Leak Path
No internal gaskets or bolts that can loosen under vibration or degrade under corrosive chemical attack.
Helium Leak Checked
Vacuum chamber leak tested with mass spectrometry to ensure zero fugitive emissions of hazardous fluids.
High Temperature Immunity
Withstands high thermal cycling where traditional elastomeric seal O-rings harden and crack.
Heavy Duty Durability
Ideal for continuous 24/7 service in petrochemical refineries and fertilizer plants.
Recommended Industries & Operating Environments
Trusted by plant engineers, system integrators, and OEM equipment builders across diverse sectors.
Frequently Asked Questions (FAQs)
Find answers to common technical queries regarding specifications, selection, calibration, and delivery.
Bolted seals utilize an elastomeric gasket or Teflon O-ring to seal the diaphragm against the body. Over time, heat, vibration, and chemical attack cause the gasket to leak, causing fill fluid loss or toxic fluid release. Welded diaphragm seals eliminate gaskets entirely with a permanent laser weld.
Yes, our welded construction is specifically engineered to handle full vacuum (-1 bar) without diaphragm delamination or air ingress.
We offer SS 316L, Hastelloy C-276, Monel 400, Inconel 625, and Tantalum.
Get Instant Pricing for Weldead Diaphragm Pressure Gauge In India
Fill in your required quantity and dial specifications. Our technical engineering team will respond within 2 hours with wholesale factory pricing.
