TRICLOVER Pressure Gauge In India
- Quick-Disconnect Sanitary Tri-Clover Clamp Sizes: 1", 1½", 2", 2½", 3"
- Electropolished SS 316L Wetted Diaphragm with Mirror Surface Finish (Ra ≤ 0.4 µm)
- Autoclavable & Fully Clean-In-Place (CIP) / Steam-In-Place (SIP) Capable
- Filled with Non-Toxic FDA Approved Food Grade Silicone or Glycerin Fluid

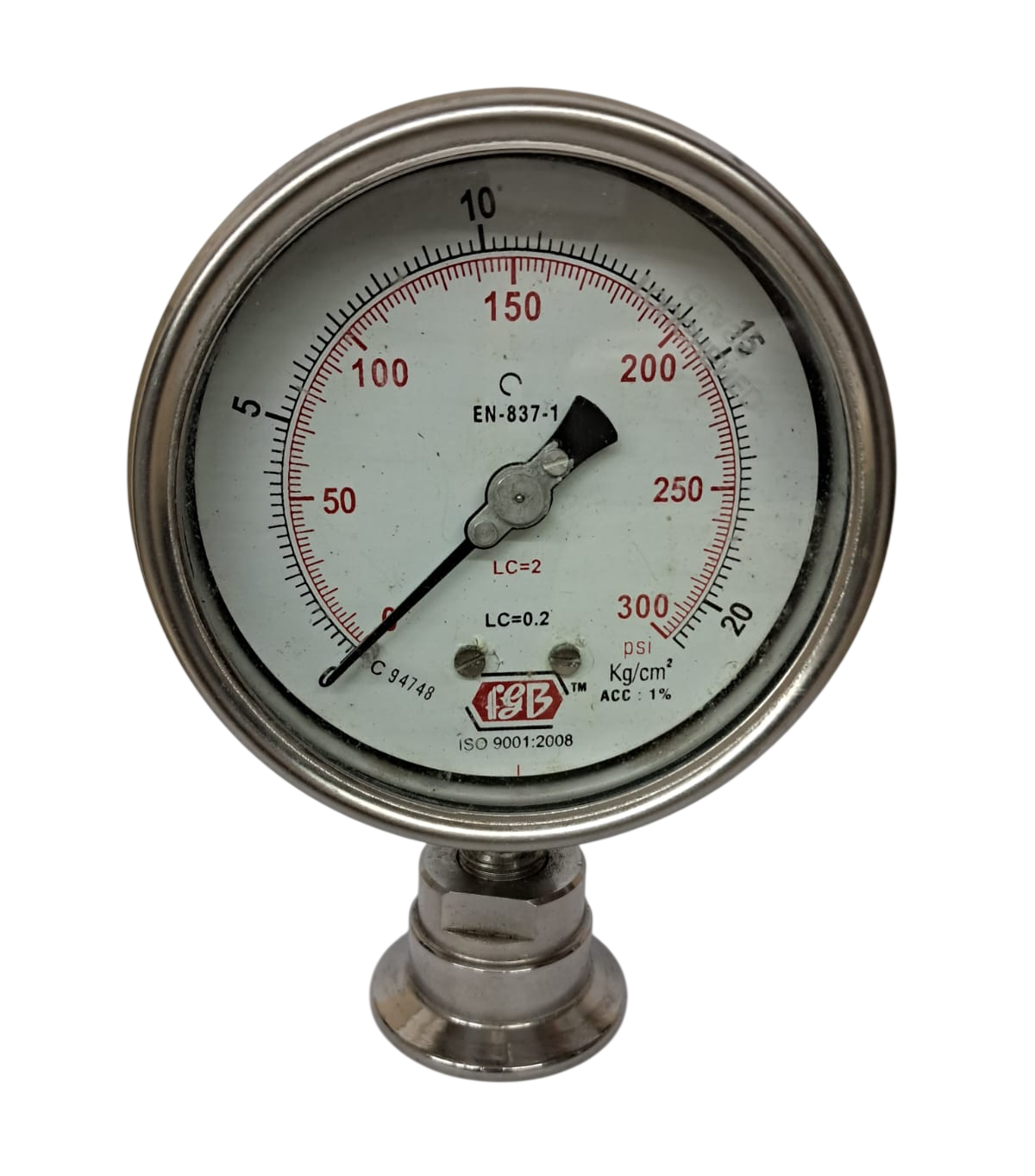

FGB Precision Assembly: TRICLOVER Pressure Gauge In India
Standard Technical Specifications
Engineered to satisfy demanding industrial criteria. Review our standard parameter ranges or request custom connection threads, dial branding, and special wetted alloys.
| Specification Parameter | Standard Technical Values / Manufacturing Options |
|---|---|
| Dial Diameters | 63mm (2½"), 100mm (4") |
| TC Flange Sizes | 1.5" Tri-Clover (50.5mm ferrule OD) or 2.0" Tri-Clover (64mm ferrule OD) |
| Pressure Ranges | -1 to 0 Bar (Vacuum), -1 to +3 Bar (Compound), 0 to 7 Bar, 0 to 10 Bar, up to 0 to 40 Bar |
| Diaphragm Metallurgy | AISI SS 316L Laser Welded (Ra < 0.4 µm) |
| Case & Bezel | AISI SS 304 Polished Stainless Steel IP65/IP66 |
| Transmission Liquid | Food Grade Silicone Fluid (FDA 21 CFR 178.3570 Compliant) |
| Accuracy Class | ±1.0% FSD (or ±1.6% FSD on 63mm dials) |
| Temperature Rating | -20°C to +150°C (steam sterilization up to 150°C) |
Key Engineering & Operational Advantages
Built for continuous 24/7 industrial performance, long service life, and unmatched measurement stability.
Zero Dead-Leg Sanitary Seal
Flush diaphragm matches inner pipe wall so fluid flows freely without stagnation pockets.
Mirror Electropolished
Ra ≤ 0.4 µm micro-finish prevents protein and microorganism adhesion.
Fast Quick-Clamp Removal
Sanitary tri-clamp connects in seconds without tools for rapid inspection and washdown.
Pharma DQ/IQ/OQ Documentation
Supplied with 3.1 MTC, roughness test reports, and FDA fluid certificates.
Recommended Industries & Operating Environments
Trusted by plant engineers, system integrators, and OEM equipment builders across diverse sectors.
Frequently Asked Questions (FAQs)
Find answers to common technical queries regarding specifications, selection, calibration, and delivery.
The most universal sanitary size in India is the 1.5" Tri-Clover (which has a ferrule flange diameter of 50.5mm) and 2.0" Tri-Clover (64mm flange diameter).
Yes, our sanitary gauges are charged exclusively with FDA compliant non-toxic medical-grade silicone oil or USP vegetable glycerin.
Yes, our autoclaving-compatible models can withstand steam sterilization cycles up to 135°C–150°C.
Get Instant Pricing for TRICLOVER Pressure Gauge In India
Fill in your required quantity and dial specifications. Our technical engineering team will respond within 2 hours with wholesale factory pricing.
