MEGHA PASKAL Manufacturers In India

Heavy-Duty Mega Pascal (MPa) Calibrated Industrial Pressure Gauges for Export Machinery & High-Pressure Systems

ISO 9001:2015 Certified Manufacturing
IS3624 & EN 837-1 Standards
NABL Traceable Test Calibration
Direct Factory Dispatch Across India
Precision Instrumentation

MEGHA PASKAL Manufacturers In India

FGB Manufacturing Co. is an acclaimed MEGHA PASKAL Manufacturers In India, producing high-precision Mega Pascal (MPa) calibrated dial pressure gauges. Conforming to international SI unit standards, our MPa pressure gauges are widely chosen by Indian machinery exporters, hydraulic equipment manufacturers, power generation utilities, and defense engineering contractors who require direct Mega Pascal readings without manual unit conversion.
  • Calibrated in True SI Units: 0-1 MPa, 0-2.5 MPa, 0-10 MPa, 0-40 MPa, 0-100 MPa
  • Heavy Duty Bourdon Tube Sensing Element in AISI SS 316 / Brass
  • Available in Dry or Liquid Glycerin Filled Anti-Vibration Execution
  • Direct Bottom & Back Panel Mounting for Standard Machinery Consoles
Call (+91) 9820305403 WhatsApp Chat

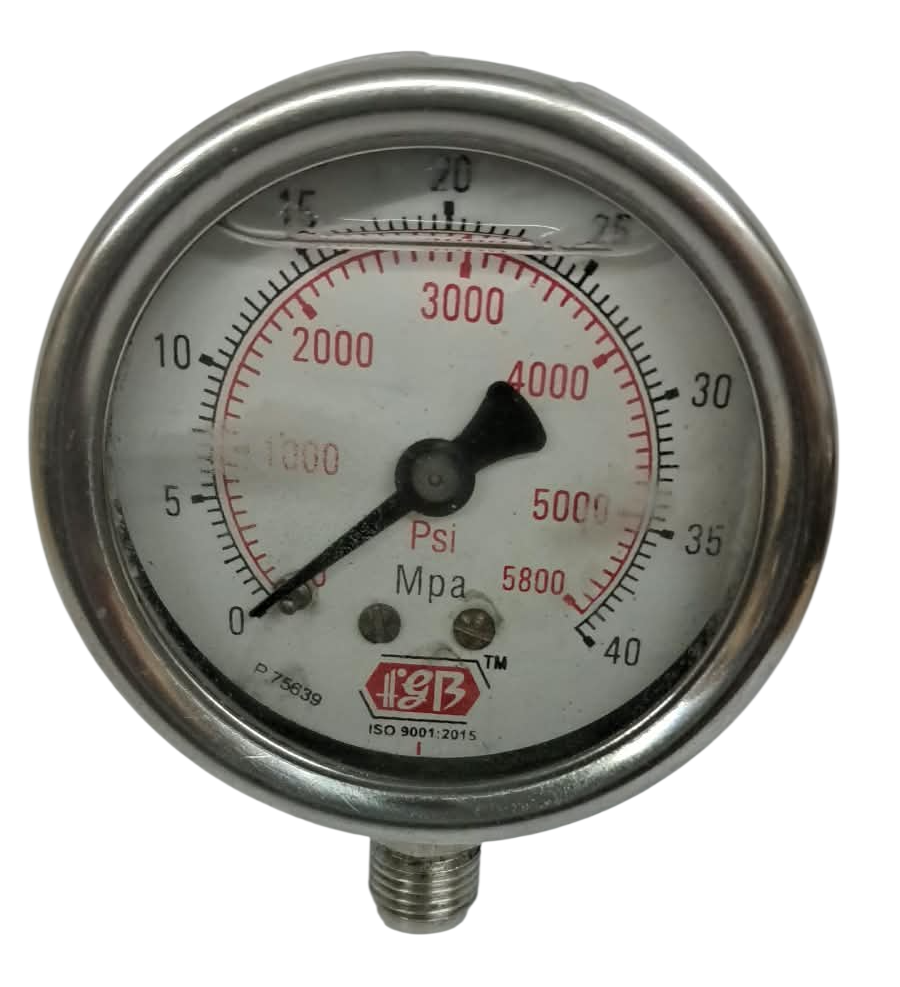

Mega Pascal (MPa) Pressure Gauge Manufactured by FGB in India

FGB Precision Assembly: MEGHA PASKAL Manufacturers In India

Technical Parameters

Standard Technical Specifications

Engineered to satisfy demanding industrial criteria. Review our standard parameter ranges or request custom connection threads, dial branding, and special wetted alloys.

Specification Parameter Standard Technical Values / Manufacturing Options
Dial Diameters 50mm (2"), 63mm (2½"), 100mm (4"), 150mm (6")
Standard MPa Ranges 0-0.6 MPa, 0-1 MPa, 0-1.6 MPa, 0-2.5 MPa, 0-4 MPa, 0-10 MPa, 0-25 MPa, 0-40 MPa, 0-70 MPa, 0-100 MPa
Accuracy Class Class 1.0 (±1.0% FSD) or Class 1.6 (±1.6% FSD)
Wetted Parts AISI SS 316 Stainless Steel or Phosphor Bronze
Casing Material AISI SS 304 Polished Stainless Steel with IP65 Seal
Thread Connection 1/4", 3/8", 1/2" BSP / NPT / Metric M20x1.5 Male
Overpressure Limit 130% of Maximum Scale Value
Window Instrument Grade Toughened Safety Glass
Design Highlights

Key Engineering & Operational Advantages

Built for continuous 24/7 industrial performance, long service life, and unmatched measurement stability.

Global SI Unit Compliance

Facilitates direct export of Indian machinery to Europe, Middle East, Japan, and Southeast Asia.

Extreme Pressure Handling

Bourdon coils designed and heat-treated for long cyclic life up to 100 MPa (1000 Bar).

Glycerin Damping Available

Prevents pointer jitter in high-frequency reciprocating pump systems.

Traceable Metrology

Each gauge includes calibration certificate traceable to national standards laboratories.

Field Applications

Recommended Industries & Operating Environments

Trusted by plant engineers, system integrators, and OEM equipment builders across diverse sectors.

Export Industrial Machinery & Hydraulic Presses
Gas Turbine Fuel Oil Injection Systems
High-Pressure Gas Cylinder Manifolds
Steam Power Generation Feedwater Systems
Plastics Extrusion & Injection Molding
Testing Benches & Pressure Relief Valve Rigs
Questions & Answers

Frequently Asked Questions (FAQs)

Find answers to common technical queries regarding specifications, selection, calibration, and delivery.

1 MPa = 10 Bar = 145.038 PSI = 10.197 kg/cm². Our MPa dials display clean, intuitive divisions that match modern international engineering standards.

Yes, we frequently manufacture custom dual scale dials with MPa in primary black and Bar or PSI in secondary red.

For machine consoles, 63mm (2½") and 100mm (4") are the most popular sizes across India.
