Hydraulic Glycerine Filled Pressure Gauge Manufacturer In India
- Pure Glycerin / Silicone Oil Filling for Harsh Vibration Damping
- Dual Pressure Scales in Bar & PSI up to 1000 Bar (15,000 PSI)
- Complete SS 304 Casing with Rugged SS 316 / Brass Internals
- Blow-Out Protection Vent Plug conforming to IS3624 & EN 837-1

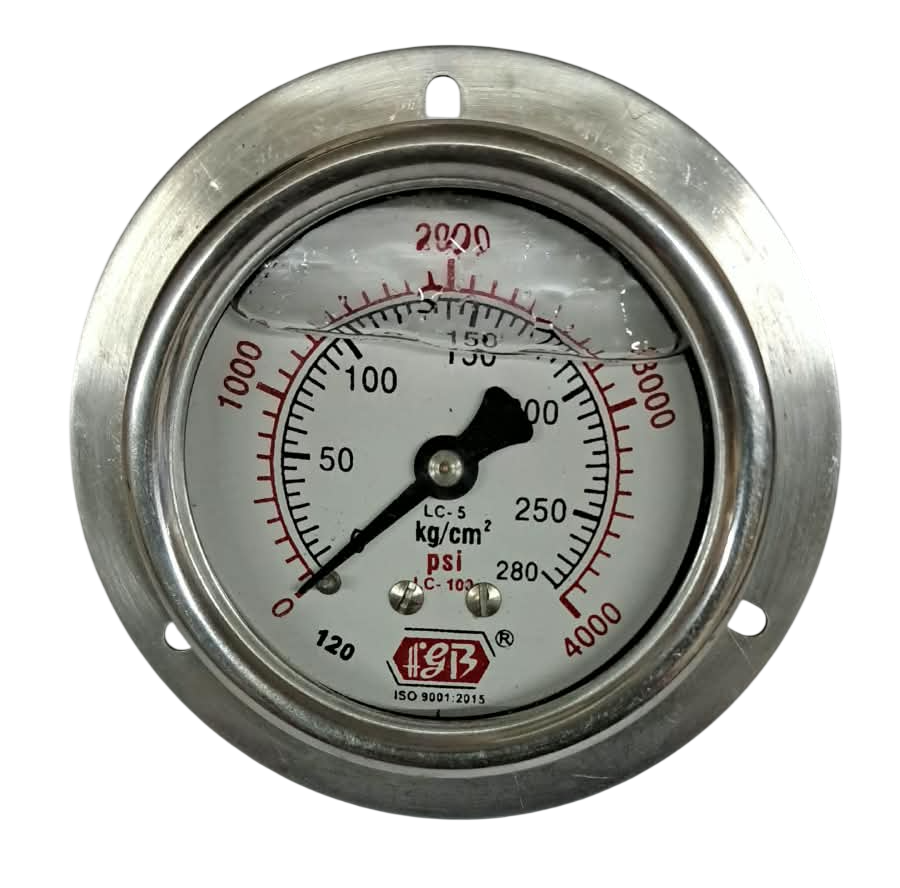

FGB Precision Assembly: Hydraulic Glycerine Filled Pressure Gauge Manufacturer In India
Standard Technical Specifications
Engineered to satisfy demanding industrial criteria. Review our standard parameter ranges or request custom connection threads, dial branding, and special wetted alloys.
| Specification Parameter | Standard Technical Values / Manufacturing Options |
|---|---|
| Standard Dial Sizes | 50mm (2"), 63mm (2½"), 100mm (4"), 150mm (6") |
| Pressure Ranges | 0 to 10 Bar up to 0 to 1000 Bar (0 to 15,000 PSI) |
| Accuracy Class | Class 1.0 (±1.0% FSD) or Class 1.6 (±1.6% FSD) |
| Sensing Element | Bourdon Tube in SS 316 or Phosphor Bronze |
| Process Connection | 1/8", 1/4", 3/8", 1/2" BSP / NPT Bottom or Back |
| Mounting Style | Direct Bottom, Center Back, Panel Clamp, Front Flange |
| Liquid Filling | Glycerine 99.7% (Silicone Oil on request for -40°C) |
| Overpressure Limit | 130% of Maximum Scale Value |
Key Engineering & Operational Advantages
Built for continuous 24/7 industrial performance, long service life, and unmatched measurement stability.
Pulsation Damped Pointer
Liquid glycerin eliminates erratic needle vibration and prevents internal mechanical gear wear.
Heavy Duty Casing
AISI SS 304 weatherproof casing with crimped or bayonet bezel ring rated IP65/IP66.
Calibrated to IS3624
Each hydraulic gauge is tested and calibrated against NABL-traceable dead weight testers.
Pan-India Supply
Direct factory pricing with rapid dispatch to OEM hydraulic machine builders across India.
Recommended Industries & Operating Environments
Trusted by plant engineers, system integrators, and OEM equipment builders across diverse sectors.
Frequently Asked Questions (FAQs)
Find answers to common technical queries regarding specifications, selection, calibration, and delivery.
Hydraulic systems generate extreme line pulsations, pump ripples, and machine vibration. Glycerin fluid acts as a viscous damper that lubricates the movement, prevents pointer flutter, and protects the bourdon tube from fatigue failure.
FGB manufactures hydraulic gauges from 0 to 10 bar up to 0 to 1000 bar (15,000 PSI), with specialized models tested up to 2000 bar for ultra-high-pressure testing.
Standard connections include 1/4" BSP(M), 3/8" BSP(M), and 1/2" BSP/NPT(M) bottom entry or back entry with panel mounting brackets.
Yes, as a primary manufacturer in Mumbai, India, we offer OEM custom dial printing with your company logo, color zones, and dual units.
Get Instant Pricing for Hydraulic Glycerine Filled Pressure Gauge Manufacturer In India
Fill in your required quantity and dial specifications. Our technical engineering team will respond within 2 hours with wholesale factory pricing.
