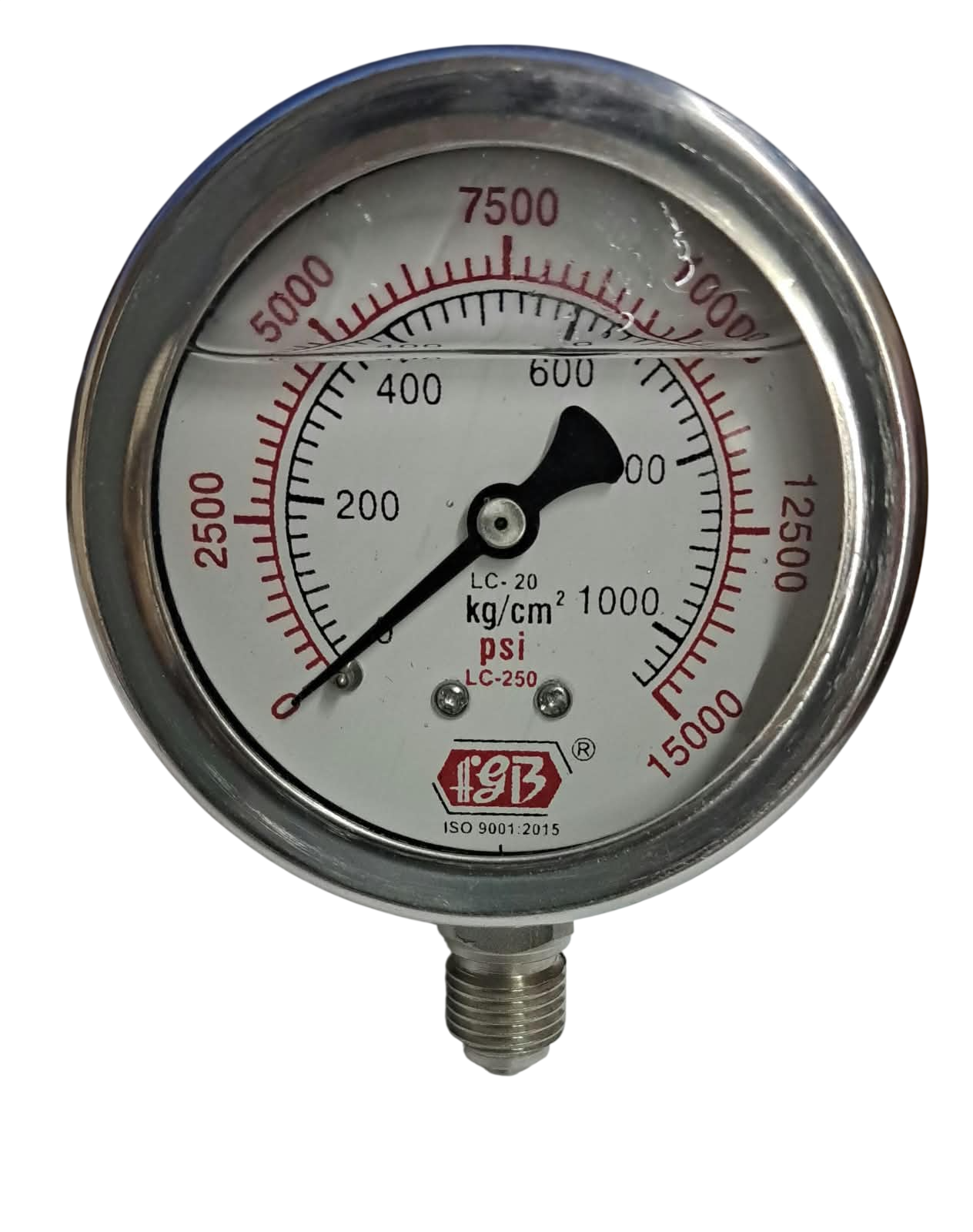

Stainless Steel Pressure Gauge Manufacturers In India
- All Stainless Steel 304 Case with SS 316/316L Wetted Bourdon & Socket
- Solid Front / Blow-Out Back Safety Pattern Available (S3 Safety Class)
- Ranges from Vacuum (-1 Bar) up to Ultra High Pressure (1600 Bar)
- TIG Welded Construction Ensuring Absolute Chemical Containment
FGB Precision Assembly: Stainless Steel Pressure Gauge Manufacturers In India
Standard Technical Specifications
Engineered to satisfy demanding industrial criteria. Review our standard parameter ranges or request custom connection threads, dial branding, and special wetted alloys.
| Specification Parameter | Standard Technical Values / Manufacturing Options |
|---|---|
| Dial Sizes | 63mm (2½"), 100mm (4"), 150mm (6"), 250mm (10") |
| Case & Bezel Material | AISI 304 Stainless Steel (AISI 316 on request) |
| Wetted Parts Material | AISI 316 Stainless Steel / 316L Stainless Steel |
| Accuracy Class | 1.0% FSD (Class 1.0) conforming to IS3624 / EN 837-1 |
| Ingress Protection | IP65 Standard, IP66 / IP67 Optional Hermetic Seal |
| Window Material | Shatterproof Toughened Safety Glass / Laminated Glass |
| Connection Sizes | 1/4", 3/8", 1/2" BSP / NPT / M20x1.5 Male Thread |
| Process Temperature | -40°C to +200°C (up to 300°C with cooling siphon) |
Key Engineering & Operational Advantages
Built for continuous 24/7 industrial performance, long service life, and unmatched measurement stability.
Severe Corrosive Media Resistance
Full SS 316 wetted parts resist aggressive acids, solvents, sea water, and petrochemical vapors.
Weatherproof & UV Resistant
SS 304 polished case does not rust, degrade, or discolor even in coastal saline atmosphere.
TIG Robotic Welded Core
Joints between socket and bourdon tube are argon TIG welded for zero pinhole leaks.
Material Test Certificates
Supplied with 3.1 Material Test Certificates (MTC) and NABL calibration reports.
Recommended Industries & Operating Environments
Trusted by plant engineers, system integrators, and OEM equipment builders across diverse sectors.
Frequently Asked Questions (FAQs)
Find answers to common technical queries regarding specifications, selection, calibration, and delivery.
Standard gauges use brass internals which corrode rapidly in contact with ammonia, acids, sea water, or sulfur compounds. All-SS gauges feature SS 316 wetted parts that prevent corrosion, scale build-up, and premature instrument rupture.
Yes, our SS gauges are rated IP65/IP66 weatherproof with neoprene rubber gaskets that seal against dust, driving rain, and corrosive coastal saline spray.
Yes, we supply specialized SS 316L and Monel wetted gauges compliant with NACE MR0175 for sour gas (H2S) applications.
Get Instant Pricing for Stainless Steel Pressure Gauge Manufacturers In India
Fill in your required quantity and dial specifications. Our technical engineering team will respond within 2 hours with wholesale factory pricing.
