KPA KILO PASKAL Manufacturers In India
- Low Pressure Capsule Models: 0-2.5 kPa, 0-6 kPa, 0-10 kPa, 0-25 kPa, 0-60 kPa
- Medium Pressure Bourdon Models: 0-100 kPa, 0-250 kPa, 0-600 kPa, 0-1000 kPa
- High Sensitivity Capsule Diaphragms in Beryllium Copper or SS 316
- External Zero Adjustment Screw to Maintain Flawless Zero Pointer Alignment

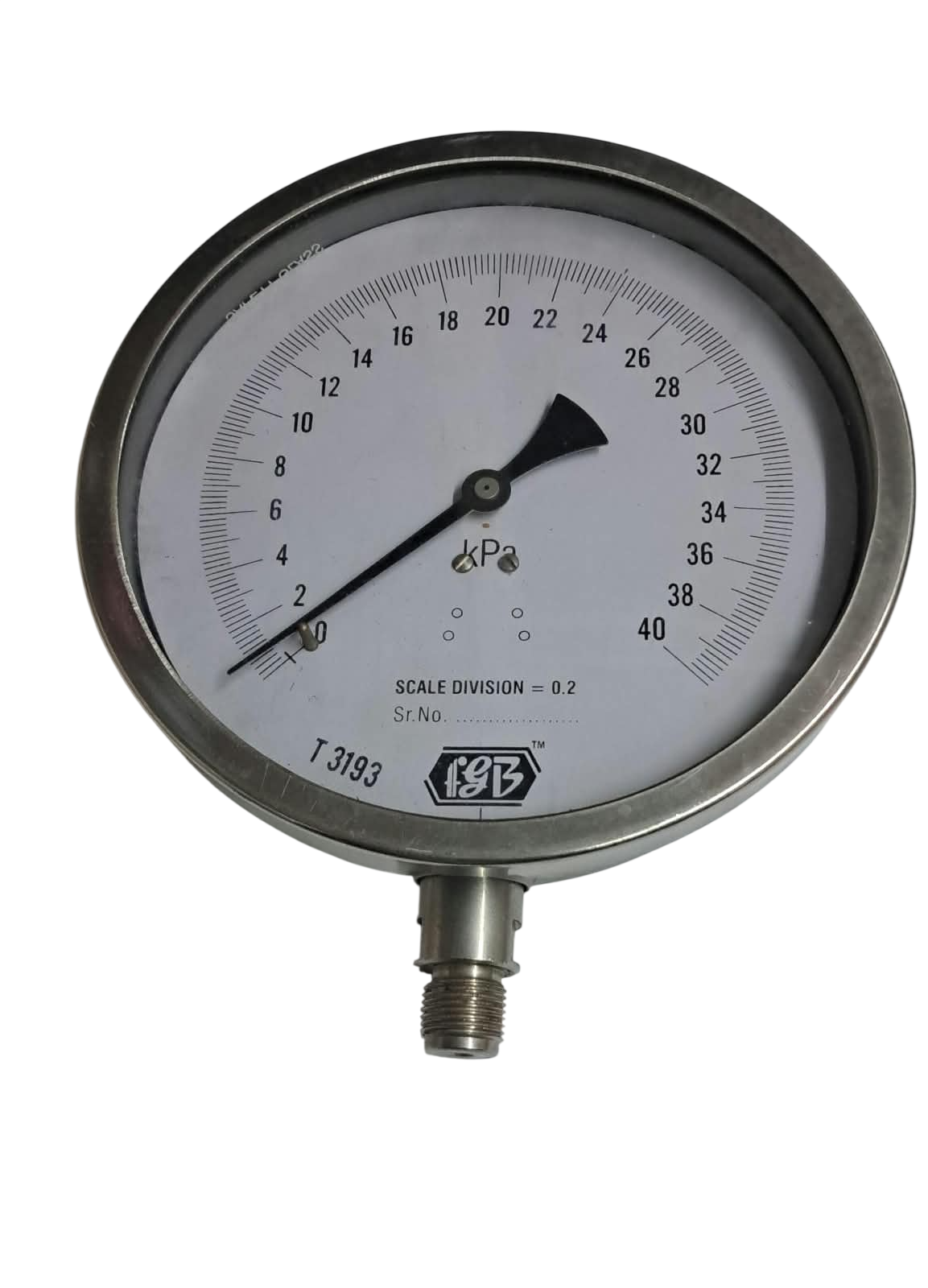

FGB Precision Assembly: KPA KILO PASKAL Manufacturers In India
Standard Technical Specifications
Engineered to satisfy demanding industrial criteria. Review our standard parameter ranges or request custom connection threads, dial branding, and special wetted alloys.
| Specification Parameter | Standard Technical Values / Manufacturing Options |
|---|---|
| Dial Diameters | 63mm (2½"), 100mm (4"), 150mm (6") |
| Sensor Mechanism | Dual Diaphragm Capsule (Low kPa) / C-Bourdon Tube (Med kPa) |
| Standard kPa Ranges | 0-6 kPa, 0-10 kPa, 0-25 kPa, 0-40 kPa, 0-60 kPa, 0-100 kPa, 0-400 kPa |
| Accuracy Class | Class 1.6 (±1.6% FSD) for Capsule; Class 1.0 (±1.0% FSD) for Bourdon |
| Wetted Parts | AISI SS 316 or Brass / Phosphor Bronze |
| Case Construction | AISI SS 304 with Bayonet Twist Bezel Ring |
| Process Connection | 1/4", 3/8", 1/2" BSP / NPT Bottom or Back Mount |
| Zero Reset | Front or Back Micrometer Zero Adjustment Screw |
Key Engineering & Operational Advantages
Built for continuous 24/7 industrial performance, long service life, and unmatched measurement stability.
Ultra Sensitive Capsule Core
Detects slight pressure variations in low-pressure gaseous media without sluggishness.
Burner Gas Line Safe
Ideal for natural gas, LPG, and biogas supply lines to industrial furnace burners.
Zero Drift Resistance
High elasticity alloys prevent permanent capsule deformation over extended use.
Calibrated to National Standards
Supplied with verified NABL-traceable calibration documentation.
Recommended Industries & Operating Environments
Trusted by plant engineers, system integrators, and OEM equipment builders across diverse sectors.
Frequently Asked Questions (FAQs)
Find answers to common technical queries regarding specifications, selection, calibration, and delivery.
1 kPa = 10 mbar = 101.97 mmWC = 0.145 PSI. For low draft applications, kPa is the preferred modern engineering standard.
Capsule type low pressure kPa gauges (0-60 kPa) are intended strictly for clean, dry, non-corrosive gases. For liquid applications, we recommend our Bourdon or Diaphragm seal kPa models.
Low pressure capsules are sensitive to barometric altitude changes. The external zero screw allows operators to easily re-zero the pointer without opening the case.
Get Instant Pricing for KPA KILO PASKAL Manufacturers In India
Fill in your required quantity and dial specifications. Our technical engineering team will respond within 2 hours with wholesale factory pricing.
