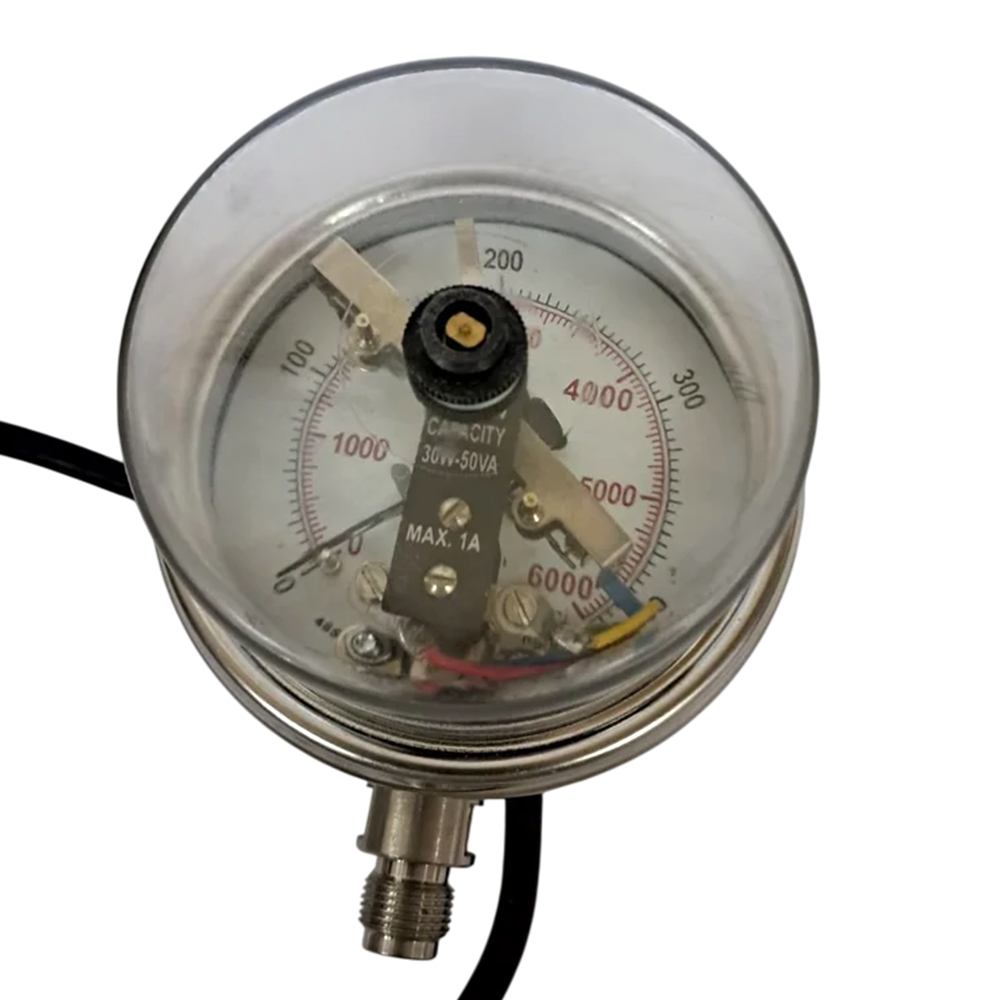

Electrical Contact Pressure Gauge Manufacturer In India
- Combines Real-Time Pressure Indication with Programmable Electrical Switching
- Configurable with Single (1NO / 1NC), Double (1NO+1NC, 2NO, 2NC), or Triple Contacts
- Heavy Duty Magnetic Snap Action Contacts to Prevent Contact Arcing
- Bayonet SS 304 Casing with Integrated IP65 Electrical Junction Box
FGB Precision Assembly: Electrical Contact Pressure Gauge Manufacturer In India
Standard Technical Specifications
Engineered to satisfy demanding industrial criteria. Review our standard parameter ranges or request custom connection threads, dial branding, and special wetted alloys.
| Specification Parameter | Standard Technical Values / Manufacturing Options |
|---|---|
| Dial Sizes | 100mm (4"), 150mm (6") |
| Contact Types | Magnetic Snap-Action, Inductive Proximity (Namur), Microswitch |
| Contact Configurations | Make Contact (NO), Break Contact (NC), Dual High-Low, SPDT |
| Switching Voltage | 24V to 250V AC/DC (Max 30W / 50VA) |
| Pressure Ranges | -1 to 0 Bar (Vacuum) up to 0 to 1000 Bar |
| Accuracy Class | ±1.0% FSD for pointer indication; ±2.0% for switching point |
| Wetted Parts | AISI SS 316 / Brass Internals |
| Electrical Terminal | Side / Top Mounted Junction Box with PG13.5 Cable Gland |
Key Engineering & Operational Advantages
Built for continuous 24/7 industrial performance, long service life, and unmatched measurement stability.
Automated Process Interlock
Directly triggers contactor relays, PLC digital inputs, or audio-visual safety sirens.
Front User Adjustable Setpoints
Knobs on window allow operators to reposition High and Low switch points easily with a key.
Magnetic Snap Assist
Permanent magnet draws contacts together rapidly, eliminating chatter and premature contact burning.
Industrial Grade Enclosure
IP65 sealed terminal box protects internal wiring from dust, splash, and oil vapors.
Recommended Industries & Operating Environments
Trusted by plant engineers, system integrators, and OEM equipment builders across diverse sectors.
Frequently Asked Questions (FAQs)
Find answers to common technical queries regarding specifications, selection, calibration, and delivery.
As system pressure changes, the main pointer moves. When it touches the adjustable contact arm set on the dial, an electrical circuit closes (or opens), signaling a control panel or motor starter to turn the pump on or off.
Yes, our magnetic snap-action contacts easily interface with 24V DC PLC digital inputs or interposing relays.
Yes, we offer specialized liquid filled electrical contact gauges utilizing non-conductive dielectric fluid to dampen heavy machine vibration.
Get Instant Pricing for Electrical Contact Pressure Gauge Manufacturer In India
Fill in your required quantity and dial specifications. Our technical engineering team will respond within 2 hours with wholesale factory pricing.
